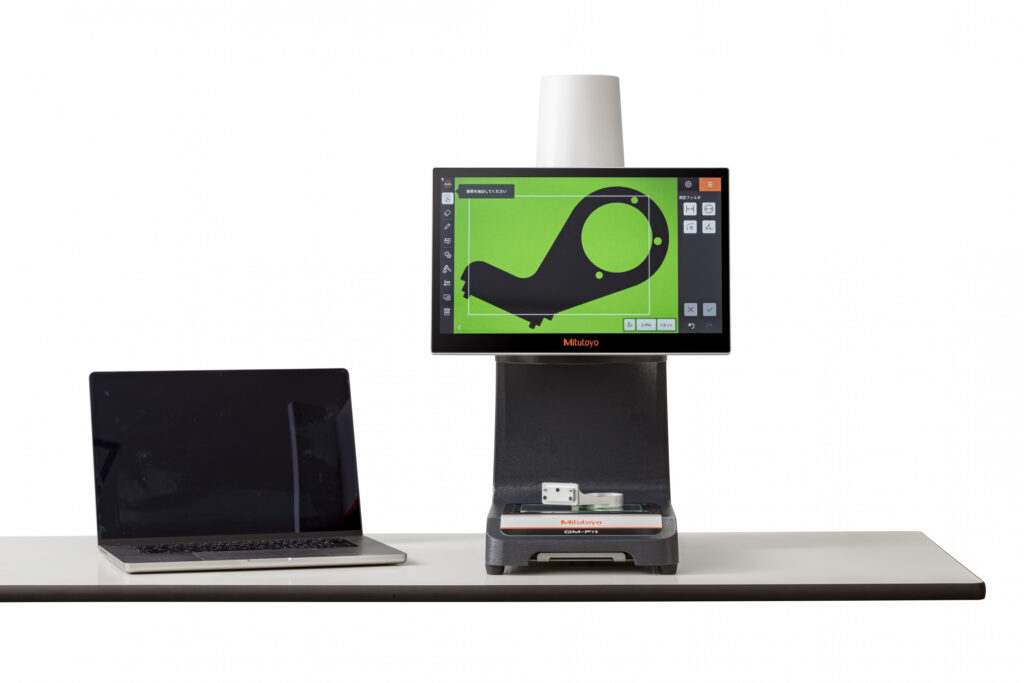

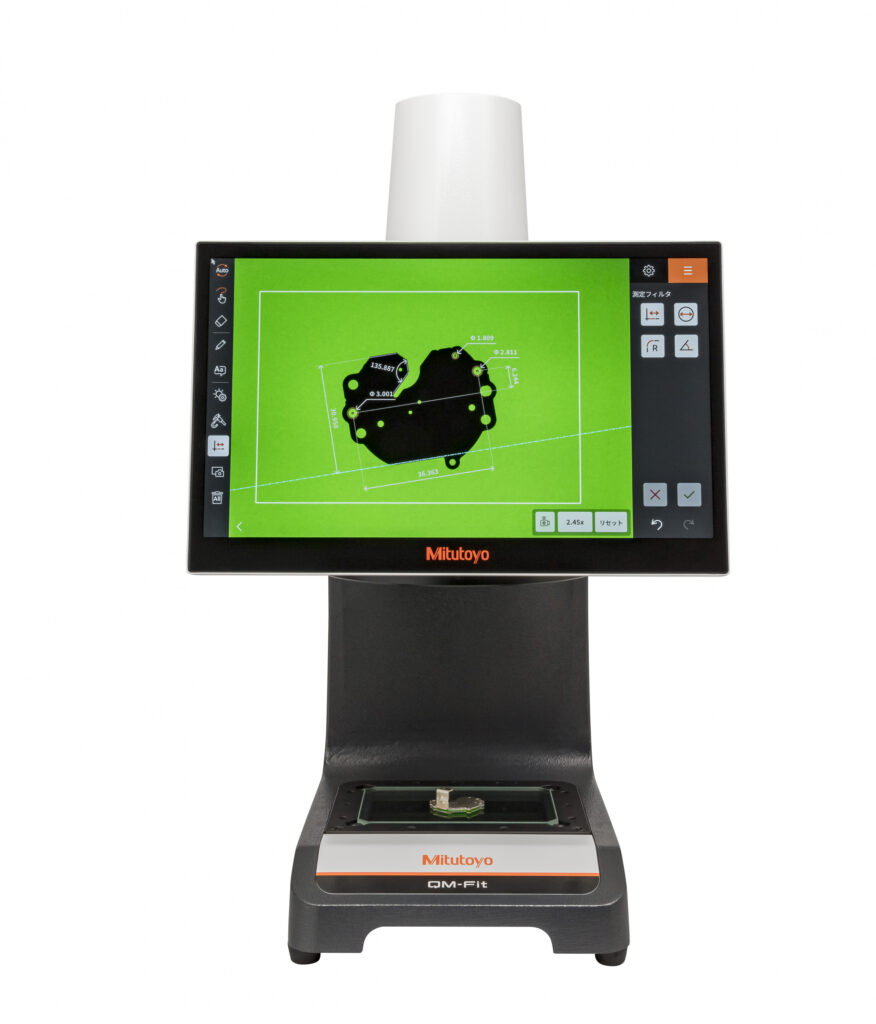

Mitutoyo has announced a new entry in the fast moving field of noncontact dimensional metrology. The company’s QM Fit is a compact manual vision measuring machine designed for quick and accurate inspection of small and thin parts. Mitutoyo positions it as a practical successor to the profile projector, a mainstay of shop floor measurement for decades. While the company did not release pricing, the pitch centers on faster setup, lower operator dependency, and integrated traceability.

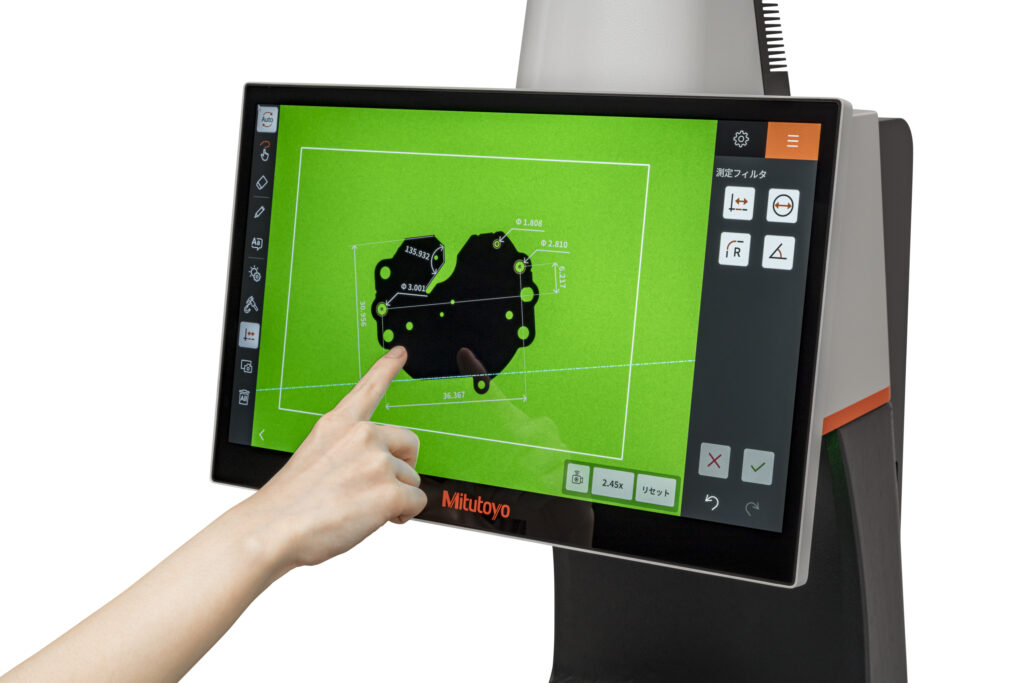

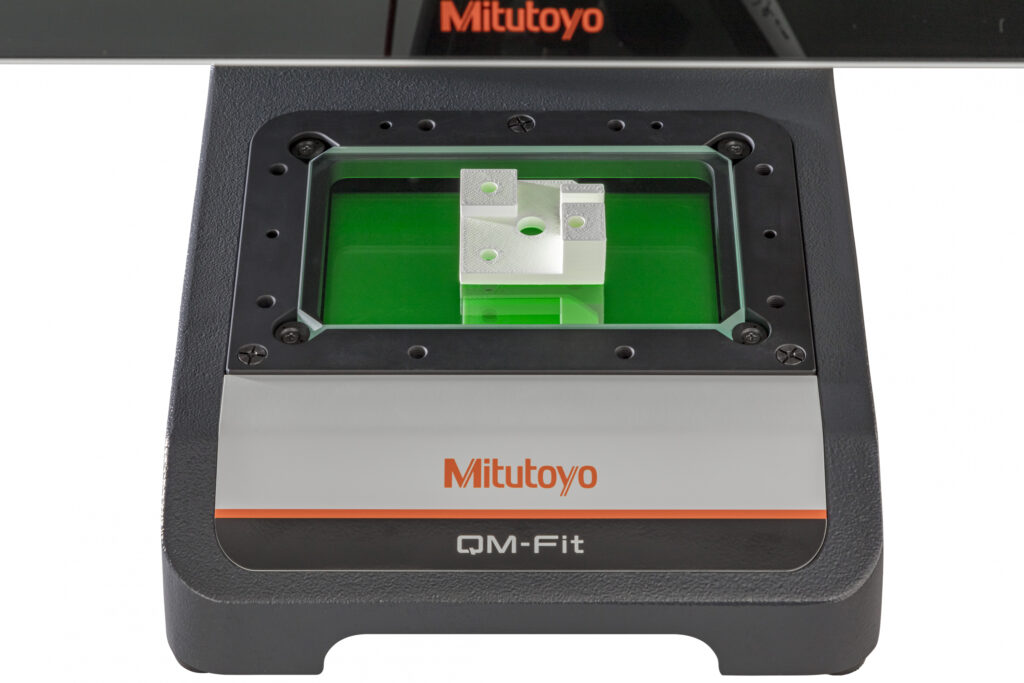

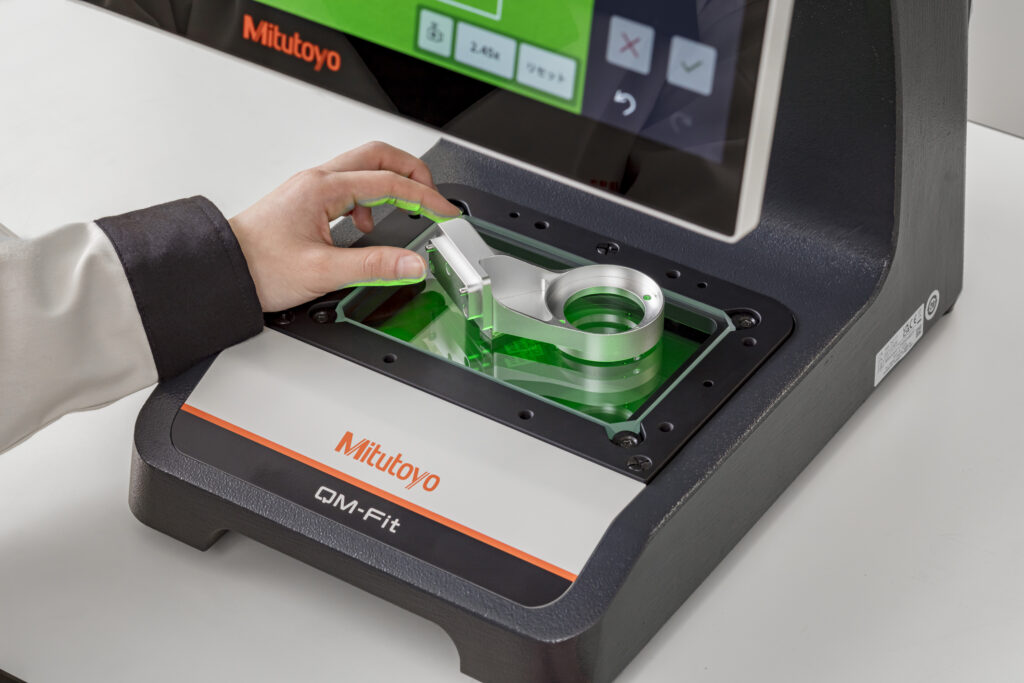

At the heart of the system is a touch first interface with automatic part recognition. Operators place a workpiece on the stage and initiate measurement without manual focusing or alignment. The software identifies common features such as circles, lines, and edges, then presents results as clear graphics with immediate pass or fail indicators. A feature called Graphically Supported Caliper Snap lets users drop digital rulers onto edges or geometries, removing the familiar ritual of aligning crosshairs on a projector screen. The unit’s imaging stack includes a twenty megapixel color sensor, digital zoom to one hundred times, a telecentric lens, and a generous thirty six millimeter depth of field, which together support crisp measurements even when surfaces are not perfectly coplanar. Mitutoyo states accuracy is calibrated to plus or minus ten micrometers with repeatability within two sigma less than or equal to four micrometers, and the software records data for audit trails and environmental correction.
The launch arrives amid a broader shift from optical comparators also known as profile projectors to vision measuring machines that automate alignment, feature detection, and data capture. Traditional comparators remain valued for noncontact measurement and their simplicity, but their outcomes often depend on operator skill, careful focusing, and manual alignment to overlays or charts. Industry guides increasingly note that comparators can be subject to human variation and can create bottlenecks when inspection volume rises or when complex part geometries are involved. Vision systems reduce that variability by detecting edges and features through software and by logging results automatically, which is why many manufacturers now evaluate them as replacements or complements to their projector fleets.
The competitive context underscores how the category has matured. Keyence’s IM Series popularized the idea of instant measurement systems where an operator places a part, presses one button, and receives dozens of dimensions with automatic report generation. Marketing materials for that line emphasize faster cycle times and the removal of operator subjectivity compared with calipers, microscopes, and optical comparators. OGP’s SmartScope family illustrates another branch of the market that combines optical, laser, and tactile probes for more complex three dimensional work and for applications that demand multi sensor correlation across features. Together these examples show that buyers now expect rapid setup, automatic recognition, and electronic records rather than manual overlays and handwritten notes.

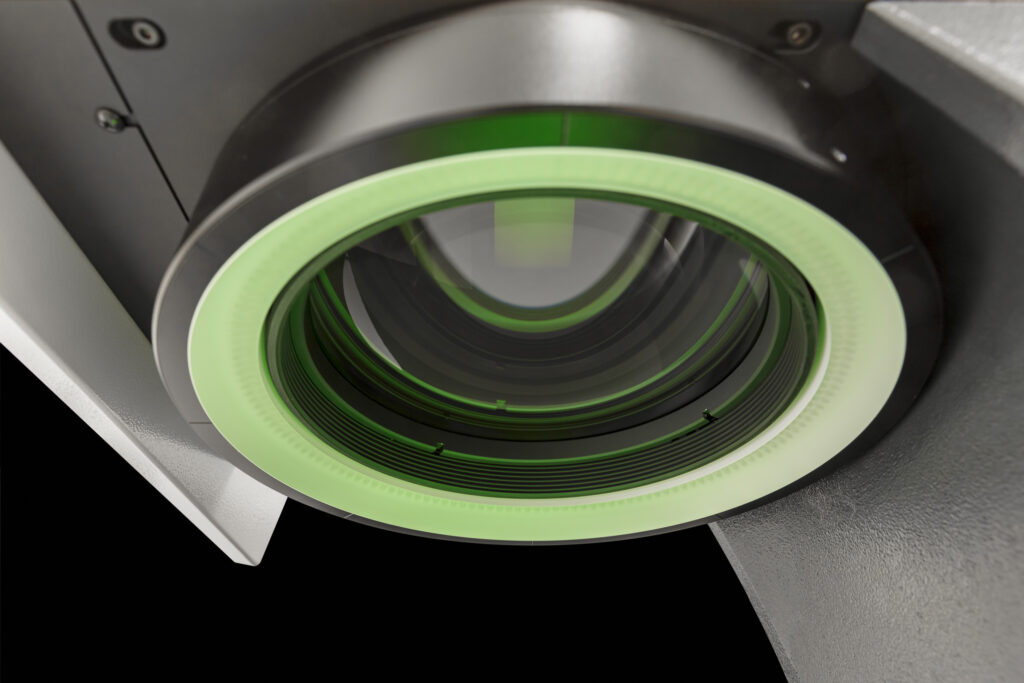

Optics are central to measurement accuracy, and the inclusion of a telecentric lens in the QM Fit is notable. Telecentric lenses keep magnification constant as the object moves within a defined range, which reduces perspective error and helps maintain dimensional accuracy across parts that are not perfectly flat. Tutorials from optics suppliers explain that the main advantage is consistent size reproduction with respect to depth, which is valuable for gauging edges and hole diameters. Depth of field also matters. A larger f number generally increases depth of field, though diffraction imposes limits at extremes, so designers balance aperture, sensor size, and illumination to maintain contrast and resolution. These fundamentals explain why even a compact bench unit that combines telecentric optics with a high resolution sensor and controlled lighting can deliver repeatable results on small features.

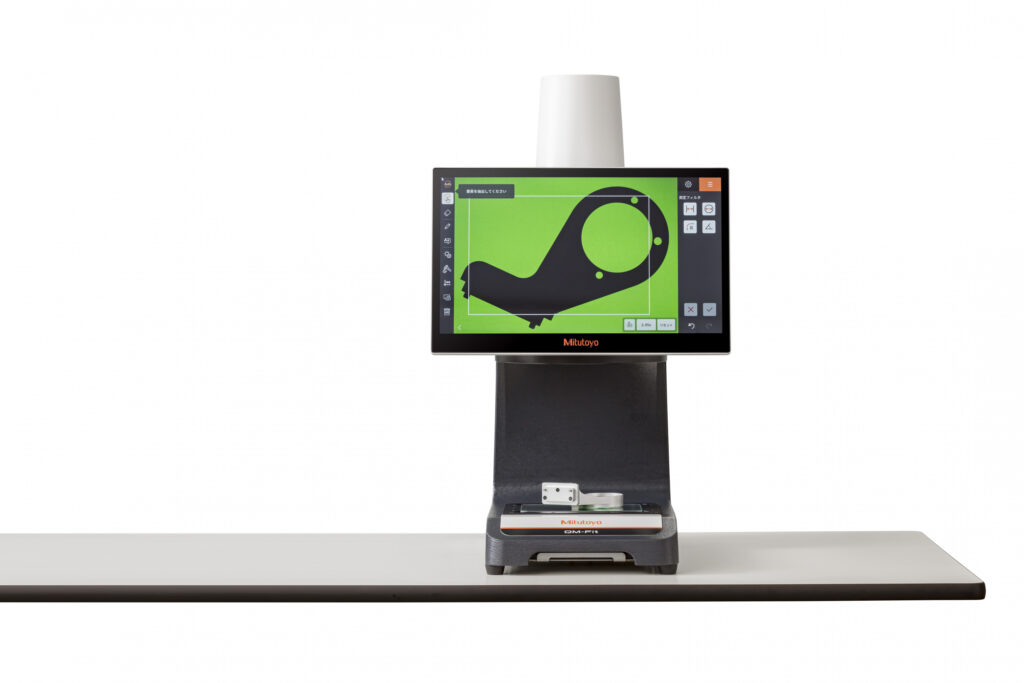

Space and workflow are practical concerns for many shops, and here Mitutoyo is targeting bench top adoption. The QM Fit’s footprint of three hundred sixty six by four hundred seven by six hundred twenty one millimeters and weight of twenty five kilograms allow it to sit on a standard workbench as a true stand alone station. An integrated personal computer and a fifteen point six inch touch display minimize external cabling and peripheral sprawl. The design aligns with a trend away from large floor mounted comparators that require more physical clearance and operator movement. One industry overview even points out that to achieve large projected images, traditional comparators often require long throw distances, which in turn makes the cabinets large relative to the small parts being inspected. Compact vision systems avoid that constraint by performing measurements directly on the sensor rather than on a distant projection screen.
The promise of higher throughput and lower cost comes from three sources. First, automatic detection reduces the time to first measurement because there is no need to center a feature under crosshairs or select a magnification chart. Second, edge detection algorithms and digital zoom limit the influence of hand steadiness and eyesight, so different operators are more likely to obtain the same result on the same part. Third, automatic logging and pass or fail graphics help quality teams identify drift or training needs early, and simplify first article inspection and incoming inspection. Similar claims have been documented by vendors across the category, including reports of dozens of dimensions captured in seconds and automatic report generation without extra steps, which gives credence to Mitutoyo’s framing of QM Fit as a throughput tool as much as a measuring device.
It is also important to be clear about where vision systems and profile projectors each fit. Comparators are economical and robust, and for simple silhouette checks or small batch inspection they remain a sound choice. Some experts advise that a mix of tools often yields the best value, with comparators handling quick daily checks and vision systems taking over for complex parts, higher precision, or when a formal quality system demands electronic records and lower uncertainty. Multisensor platforms that add touch probes or laser scanning can push capability even further, but they also increase cost and complexity. Buyers should therefore match tools to the dominant part mix, tolerances, and staffing model in their plant.
Against this backdrop the QM Fit arrives with a clear message. It aims to deliver the immediacy and operator independence of an instant measurement station in a compact form factor, while preserving the core appeal of noncontact inspection. Its telecentric optics and high resolution imaging address the geometrical pitfalls that can plague simple camera systems, and its user interface caters to teams that need to train quickly and scale inspection across shifts. For manufacturers that still rely on profile projectors for critical checks, a bench top vision system like this could shorten queues at the inspection room door and bring more consistency to pass or fail decisions.
The decisive factor will be how the system performs on the real parts that define each shop’s workload. Surface finish, edge sharpness, contrast, and fixturing can all influence edge detection. Lighting strategies often need tuning to minimize glare on reflective metals or to lift contrast on dark plastics. Telecentric lenses help, but depth of field is finite, so parts with large step heights may need multiple focus planes or different setups. These are standard considerations in vision metrology and they apply to any vendor’s platform. Still, with improved optics, friendlier software, and integrated records, the category continues to advance. Mitutoyo’s QM Fit signals that the company intends to compete for bench space in that rapidly evolving segment.
